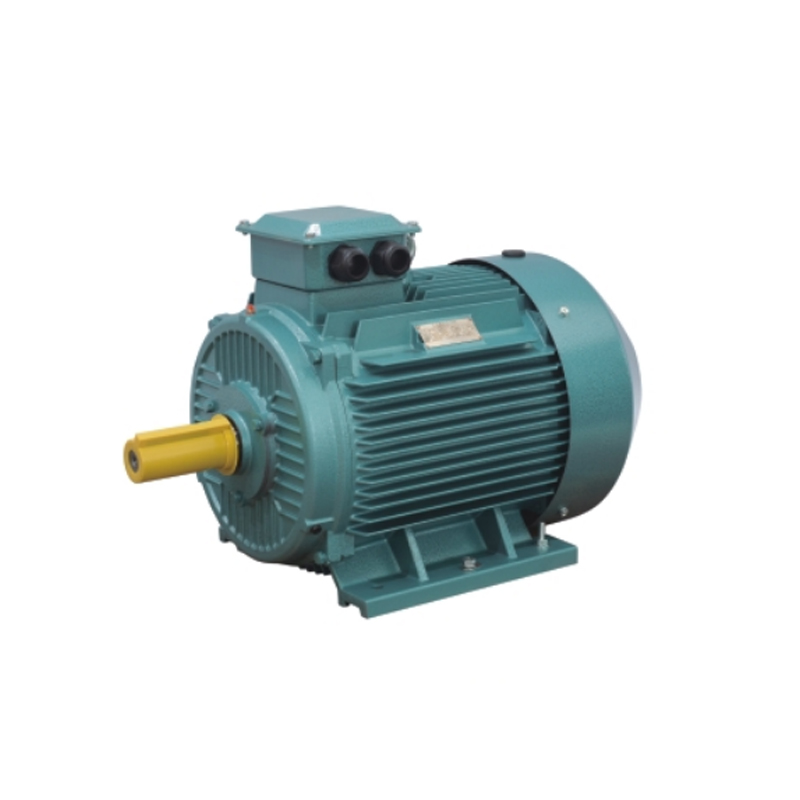

YE4 series three phase asynchronous motor

These series provide a cost-efficient solution,with totally-enclosed fan cooling.The motors have large starting torque,low noise,small vibration,high efficiency,high degree of protection, large margin of temperature rise,safe and reliable operation,etc.It can drive machine tools,fans, pumps,compressors,mixers,packaging machinery,construction machinery and other mechanical transmission equipment,widely used in industries such as agriculture,national defense,chemical industry,petroleum,transportation,food and beverages,medicine and other fields.

The efficiency value of this series can meet the level 2 standard stipulated in GB18613-2020, namely IE4 of IEC60034-30-1.

Product Details:

Protection degree:IP55

Cooling method:IC411

Insulation class:F

Rated voltage:380V

Rated frequencv:50Hz

Operation Mode:S1(continuous duty)

Altitude:less than 1000 meters above elevation

Ambient temperature:-15℃-+40℃

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

Technical parameters of YE4 series motors
Type	Output		Full Load				NoisedB(A)	Vibration(mm/s)	LRT	BDT	LRA	weight(kg)
Type	(kw)	(HP)	Current(A)	Speed（r/min）	Eff（%）	P.F.(Cosφ)	NoisedB(A)	Vibration(mm/s)	RLT	RLT	RLA	weight(kg)
Synchronous Speed3000r/min(2p)
YE4-80M1-2	0.75	1	1.64	2870	83.5	0.83	62	1.6	2.2	2.3	8.5	19
YE4-80M2-2	1.1	1.5	2.36	2870	85.2	0.83	62	1.6	2.2	2.3	8.5	20
YE4-90S-2	1.5	2	3.1	2900	86.5	0.85	67	1.6	2.2	2.3	9	25
YE4-90L-2	2.2	3	4.42	2900	88	0.86	67	1.6	2.2	2.3	9	35
YE4-100L-2	3	4	5.9	2900	89.1	0.87	74	1.6	2.2	2.3	9.5	45
YE4-112M-2	4	5.5	7.7	2910	90	0.88	77	1.6	2.2	2.3	9.5	50
YE4-132S1-2	5.5	7.5	10.4	2940	90.9	0.88	79	1.6	2	2.3	9.5	85
YE4-132S2-2	7.5	10	14	2940	91.7	0.89	79	1.6	2	2.3	9.5	95
YE4-160M1-2	11	15	20.3	2950	92.6	0.89	81	2.2	2	2.3	9.5	135
YE4-160M2-2	15	20	27.4	2950	93.3	0.89	81	2.2	2	2.3	9.5	150
YE4-160L-2	18.5	25	33.7	2950	93.7	0.89	81	2.2	2	2.3	9.5	170
YE4-180M-2	22	30	40	2960	94	0.89	83	2.2	2	2.3	9.5	245
YE4-200L1-2	30	40	54.2	2970	94.5	0.89	84	2.2	2	2.3	9	330
YE4-200L2-2	37	50	66.6	2970	94.8	0.89	84	2.2	2	2.3	9	345
YE4-225M-2	45	60	80.9	2970	95	0.89	86	2.2	2	2.3	9	440
YE4-250M-2	55	75	98.5	2975	95.3	0.89	89	2.2	2	2.3	9	550
YE4-280S-2	75	100	134	2980	95.6	0.89	91	2.2	1.8	2.3	8.5	685
YE4-280M-2	90	125	160	2980	95.8	0.89	91	2.2	1.8	2.3	8.5	735
YE4-315S-2	110	150	196	2980	96	0.89	92	2.8	1.8	2.3	8.5	1300
YE4-315M-2	132	180	234	2980	96.2	0.89	92	2.8	1.8	2.3	8.5	1370
YE4-315L1-2	160	220	284	2980	96.3	0.89	92	2.8	1.8	2.2	8.5	1465
YE4-315L2-2	185	250	328	2980	96.4	0.89	92	2.8	1.8	2.2	8.5	1545
YE4-315L2-2	200	270	354	2980	96.5	0.89	92	2.8	1.8	2.2	8.5	1560
YE4-355M1-2	220	300	381	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1720
YE4-355M2-2	250	340	433	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1830
YE4-355L1-2	280	380	484	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	1960
YE4-355L2-2	315	430	545	2985	96.5	0.91	97	2.8	1.6	2.2	8.5	2160
YE4-3551-2	355	475	621	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2280
YE4-3552-2	375	500	656	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2320
YE4-3552-2	400	535	700	2985	96.5	0.9	97	2.8	0.9	1.8	8.6	2360
YE4-3553-2	450	600	787	2985	96.5	0.9	97	2.8	0.8	1.8	8.6	2440
Synchronous Speed1500r/min(4P)
YE4-80M1-4	0.55	0.75	1.33	1435	83.9	0.75	56	1.6	2.3	2.3	8.5	18
YE4-80M2-4	0.75	1	1.8	1435	85.7	0.74	56	1.6	2.3	2.3	8.5	20
YE4-90S4	1.1	1.5	2.56	1440	872	0.75	59	1.6	2.3	2.3	8.5	27
YE4-90L-4	15	2	3.4	1440	88.2	0.76	59	1.6	2.3	2.3	9	30
YE4-100L1-4	2.2	3	4.73	1460	89.5	0.79	64	1.6	2.3	2.3	9	43
YE4-100L2-4	3	4	6.3	1460	90.4	0.8	64	1.6	2.3	2.3	9.5	50
YE4-112M-4	4	5.5	8.3	1460	91.1	8	65	1.6	2.3	2.3	9.5	55
YE4-132S-4	5.5	7.5	11.4	1470	91.9	0.8	71	1.6	2	2.3	9.5	100
YE4-132M-4	7.5	10	15.2	1470	92.6	0.81	71	1.6	2	2.3	9.5	115
YE4-160M-4	11	15	21.6	1475	93.3	0.83	73	2.2	2	2.3	9.5	150
YE4-160L-4	15	20	28.9	1475	93.9	0.84	73	22	2	2.3	9.5	175
YE4-180M-4	18.5	25	35.1	1480	94.2	0.85	76	2.2	2	2.3	9.5	245
YE4-180L-4	22	30	41.6	1480	94.5	0.85	76	2.2	2	2.3	9.5	260
YE4-200L-4	30	40	56.5	1485	94.9	0.85	76	2.2	2	2.3	9	370
YE4-225S-4	37	50	69.5	1485	95.2	0.85	78	2.2	2	2.3	9	410
YE4-225M-4	45	60	84.3	1485	95.4	0.85	78	2.2	2	2.3	9	435
YE4-250M-4	55	75	102	1485	95.7	0.86	79	2.2	2	2.3	9	555
YE4-280S-4	75	100	136	1488	96	0.87	80	2.2	2	2.3	8.5	720
YE4-280M-4	90	125	162	1488	96.1	0.88	80	2.2	2	2.3	8.5	790
YE4-315S-4	110	150	195	1490	96.3	0.89	88	2.8	1.8	2.2	8.5	1320
YE4-315M-4	132	180	234	1490	96.4	0.89	88	2.8	1.8	2.2	8.5	1390
YE4-315L1-4	160	220	280	1490	96.6	9	88	2.8	1.8	2.2	8.5	1460
YE4-315L2-4	185	250	323	1490	96.7	9	88	2.8	1.8	22	8.5	1520
YE4-315L2-4	200	270	349	1490	96.7	0.9	88	2.8	1.8	22	8.5	1545
YE4-355M1-4	220	300	384	1490	96.7	0.9	92	2.8	1.8	22	8.5	1750
YE4-355M2-4	250	340	436	1490	96.7	0.9	92	2.8	1.8	2.2	8.5	1840
YE4-355L1-4	280	380	489	1490	96.7	0.9	92	2.8	1.8	22	8.5	1930
YE4-355L2-4	315	430	550	1490	96.7	0.9	92	2.8	1.8	2.2	8.5	2280
YE4-3551-4	355	475	634	1490	96.7	0.88	92	2.8	0.9	1.8	8.5	2400
YE4-3552-4	375	500	670	1490	96.7	0.88	92	2.8	0.9	18	8.5	2440
YE4-3552-4	400	535	714	1490	96.7	0.88	92	2.8	0.9	18	8.5	2480
YE4-3553-4	450	600	803	1490	96.7	0.88	92	2.8	0.8	1.8	8.5	2560
Synchronous Speed1000r/min(6P)
YE4-90S-6	0.75	1	1.97	950	82.7	0.7	57	1.6	2.1	2.1	7.5	25
YE4-90L6	1.1	1.5	2.83	950	84.5	0.7	57	1.6	2.1	2.1	7.5	30
YE4-100L-6	15	2	3.74	955	85.9	0.71	61	1.6	2.1	2.1	7.5	40
YE4-112M-6	2.2	3	5.4	960	87.4	0.71	65	1.6	2.1	2.1	7.5	46
YE4-132S-6	3	4	72	970	88.6	0.71	69	1.6	2	2.1	7.5	85
YE4-132M1-6	4	5.5	9.4	970	89.5	0.72	69	1.6	2	2.1	8	95
YE4-132M2-6	5.5	7.5	12.8	970	90.5	0.72	69	1.6	2	2.1	8	110
YE4-160M-6	7.5	10	16.4	975	91.3	0.76	73	2.2	2	2.1	8	150
YE4-160L-6	11	15	23.5	975	92.3	0.77	73	2.2	2	2.1	8.5	170
YE4-180L-6	15	20	30.7	980	92.9	0.8	73	2.2	2	2.1	8.5	205
YE4-200L1-6	18.5	25	37.6	985	93.4	0.8	73	2.2	2	2.1	8.5	310
YE4-200L2-6	22	30	44	985	93.7	0.81	73	2.2	2	2.1	8.5	330
YE4-225M-6	30	40	59	985	94.2	0.82	74	2.2	2	2.1	8.3	400
YE4-250M-6	37	50	71.7	985	94.5	0.83	76	2.2	2	2.1	8.3	480
YE4-280S-6	45	60	86.9	990	94.8	0.83	78	2.2	2	2	8.5	705
YE4-280M-6	55	75	105	990	95.1	0.84	78	2.2	2	2	8.5	765
YE4-315S-6	75	100	142	990	95.4	0.84	83	2.8	1.6	2	8	1265
YE4-315M-6	90	125	168	990	95.6	0.85	83	2.8	1.6	2	8	1335
YE4-315L1-6	110	150	205	990	95.8	0.85	83	2.8	1.6	2	8	1465
YE4-315L2-6	132	180	243	990	96	0.86	83	2.8	1.6	2	8	1525
YE4-355M1-6	160	220	294	990	96.2	0.86	85	2.8	1.6	2	8	1680
YE4-355M2-6	185	250	339	990	96.3	0.86	85	2.8	1.6	2	8	1780
YE4-355M2-6	200	270	367	990	96.3	0.86	85	2.8	1.6	2	8	1810
YE4-355L1-6	220	300	403	990	96.4	0.86	85	2.8	1.6	2	8	1960
YE4-355L2-6	250	340	458	990	96.5	0.86	85	2.8	1.6	2	8	2250
YE4-3551-6	280	380	537	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2440
YE4-3552-6	315	430	604	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2490
YE4-3553-6	355	475	681	990	96.6	0.82	91	2.8	0.9	1.8	7.9	2550
Synchronous Speed750r/min(8P)
YE4-100L1-8	0.75	1	2.2	700	78.4	0.66	59	1.6	2	2	7	45
YE4-100L2-8	1.1	1.5	3.09	700	80.8	0.67	59	1.6	2	2	7	47
YE4-112M-8	1.5	2	4	705	82.6	0.69	61	1.6	2	2	7	50
YE4-132S-8	2.2	3	5.7	715	84.5	0.7	64	1.6	1.8	2	7.5	65
YE4-132M-8	3	4	7.6	715	85.9	0.7	64	1.6	1.8	2	7.8	75
YE4-160M1-8	4	5.5	9.8	720	87.1	0.71	68	2.2	1.8	2	7.9	105
YE4-160M2-8	5.5	7.5	13.1	720	88.3	0.72	68	2.2	1.8	2	8.1	125
YE4-160L-8	7.5	10	17.2	720	89.3	0.74	68	2.2	1.8	2	7.8	135
YE4-180L-8	11	15	25	725	90.4	0.74	70	2.2	1.8	2	7.9	200
YE4-200L-8	15	20	33.3	730	91.2	0.75	73	2.2	1.8	2	8	240
YE4-225S-8	18.5	25	40.9	730	91.7	0.75	73	2.2	1.8	2	8.1	280
YE4-225M-8	22	30	47.8	730	92.1	0.76	73	2.2	1.8	2	8.3	310
YE4-250M-8	30	40	63.9	735	92.7	0.77	75	2.2	1.8	2	7.9	400
YE4-280S-8	37	50	77.4	735	93.1	0.78	76	2.2	1.8	2	7.9	530
Ye4-280M-8	45	60	93.9	735	93.4	0.78	76	2.2	1.8	2	7.9	590
YE4-315S-8	55	75	111	740	93.7	0.8	82	2.8	1.6	2	8.2	790
YE4-315M-8	75	100	151	740	94.2	0.8	82	2.8	1.6	2	7.6	1100
YE4-315L1-8	90	125	179	740	94.4	0.81	82	2.8	1.6	2	7.7	1160
YE4-315L2-8	110	150	218	740	94.7	0.81	82	2.8	1.6	2	7.7	1260
YE4-355M1-8	132	180	261	743	94.9	0.81	89	2.8	1.6	2	7.7	1760
YE4-355M2-8	160	220	312	743	95.1	0.82	89	2.8	1.6	2	7.7	1850
YE4-355L1-8	185	250	360	743	95.3	0.82	89	2.8	1.6	2	7.8	1990
YE4-355L2-8	200	270	388	743	95.4	0.82	89	2.8	1.6	2	7.8	2380
YE4-3551-8	220	300	438	740	95.4	0.8	89	2.8	1.1	1.8	7.6	2430
YE4-3552-8	250	340	498	740	95.4	0.8	89	2.8	1.1	1.8	7.6	2500
YE4-3553-8	280	380	557	740	95.4	0.8	89	2.8	0.9	1.8	7.6	2980
YE4-3553-8	315	430	627	740	95.4	0.8	89	2.8	0.9	1.8	7.6	3100
