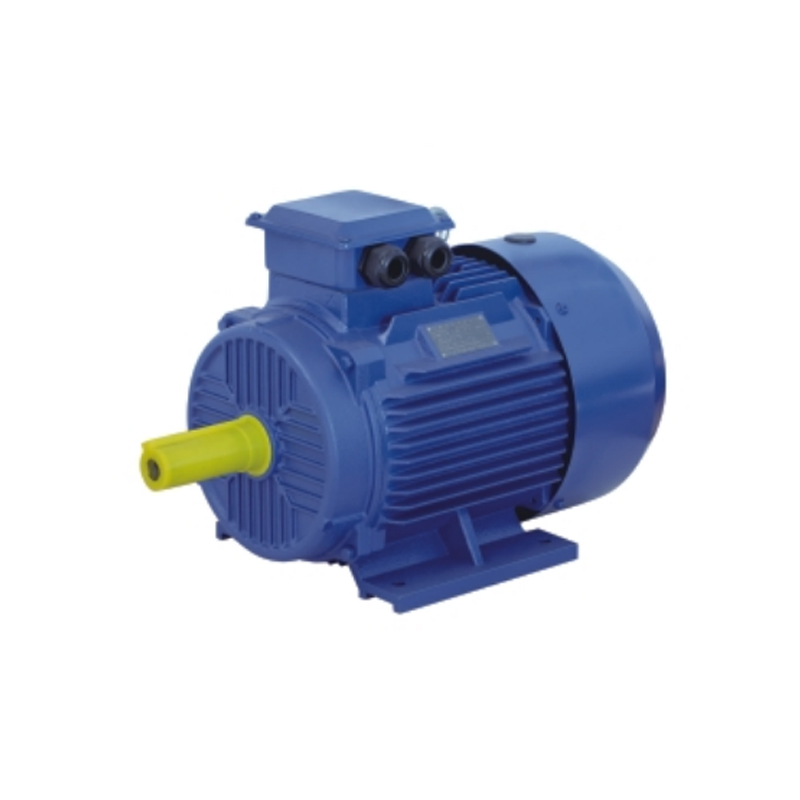

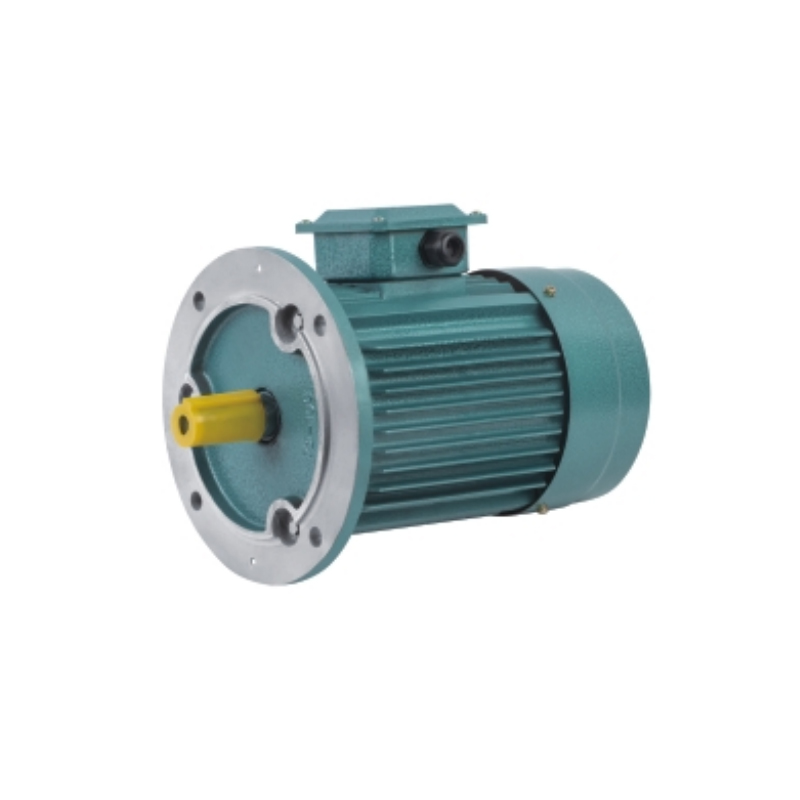

YE3 series three phase asynchronous motor

YE3 series three phase asynchronous motor

YE3系列三相異步電動機是采用新材料、新工藝制造的全封閉鼠籠式三相異步電動機，其效率指標符合GB18613-2020《電動機能效限定值及能效等級》規定的3級能效的效率值，相當于IEC60034-30-1的IE3效率值。

本系列電動機的提高效率設計，符合國家對行業提出的節能降耗要求。本系列電動機具有節能效果好、結構合理、防護等級高、溫升裕度大等特點，適用于機床、風機、水泵、包裝機械、運輸機械等各種應用場合，是Y2、YE2系列電動機的理想換代產品。

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

Technical parameters of YE3 series motors
Type	Output		Full Load				NoisedB(A)	Vibration(mm/s)	LRT RLT	BDT RLT	LRA RLA	weight(kg)
Type	(kw)	(HP)	Current(A)	Speed（r/min）	Eff（%）	P.F.(Cosφ)	NoisedB(A)	Vibration(mm/s)	LRT RLT	BDT RLT	LRA RLA	weight(kg)
同步轉速3000 r/min(2極)Synchronous Speed3000r/min(2p)
YE3-80M1-2	0.75	1	1.72	2855	80.7	0.82	62	1.6	2.3	2.3	7	18
YE3-80M2-2	1.1	1.5	2.43	2855	82.7	0.83	62	1.6	2.2	2.3	7.6	19
YE3-90S-2	1.5	2	3.22	2875	84.2	0.84	67	1.6	2.2	2.3	7.9	18
YE3-90L-2	2.2	3	4.58	2875	85.9	0.85	67	1.6	2.2	2.3	7.9	34
YE3-100L-2	3	4	6	2880	87.1	0.87	74	1.6	2.2	2.3	8.5	38
YE3-112M-2	4	5.5	7.8	2900	88.1	0.88	77	1.6	2.2	2.3	8.5	45
YE3-132S1-2	5.5	7.5	10.6	2900	89.2	0.88	79	1.6	2	2.3	8.5	63
YE3-132S2-2	7.5	10	14.4	2900	90.1	0.88	79	1.6	2	2.3	8.5	69
YE3-160M1-2	11	15	20.6	2940	91.2	0.89	81	2.2	2	2.3	8.5	108
YE3-160M2-2	15	20	27.9	2940	91.9	0.89	81	2.2	2	2.3	8.5	123
YE3-160L-2	18.5	25	34.2	2940	92.4	0.89	81	2.2	2	2.3	8.5	137
YE3-180M-2	22	30	40.5	2955	92.7	0.89	83	2.2	2	2.3	8.5	177
YE3-200L1-2	30	40	54.9	2965	93.3	0.89	84	2.2	2	2.3	8.5	245
YE3-200L2-2	37	50	67.4	2965	93.7	0.89	84	2.2	2	2.3	8.5	249
YE3-225M-2	45	60	80.8	2970	94	0.9	86	2.2	2	2.3	8	293
YE3-250M-2	55	75	98.5	2975	94.3	0.9	89	2.2	2	2.3	8	405
YE3-280S-2	75	100	134	2975	94.7	0.9	91	2.2	1.8	2.3	7.5	575
YE3-280M-2	90	125	160	2975	95	0.9	91	2.2	1.8	2.3	7.5	600
YE3-315S-2	110	150	195	2980	95.2	0.9	92	2.8	1.8	2.3	7.5	874
YE3-315M-2	132	180	234	2980	95.4	0.9	92	2.8	1.8	2.3	7.5	952
YE3-315L1-2	160	220	279	2980	95.6	0.91	92	2.8	1.8	2.3	7.5	995
YE3-315L2-2	200	270	349	2980	95.8	0.91	92	2.8	1.8	2.2	7.5	1086
YE3-355M1-2	220	300	383	2980	95.8	0.91	100	2.8	1.6	2.2	7.5	1690
YE3-355M2-2	250	340	436	2980	95.8	0.91	100	2.8	1.6	22	7.5	1740
YE3-355L1-2	280	380	488	2980	95.8	0.91	100	2.8	1.6	2.2	7.5	1908
YE3-355L2-2	315	430	549	2980	95.8	0.91	100	2.8	1.6	2.2	7.5	1735
Synchronous Speed1500r/min(4P)
YE3-80M1-4	0.55	0.75	1.38	1400	80.8	0.75	56	1.6	2.4	2.3	6.6	17
YE3-80M2-4	0.75	1	1.84	1400	82.5	0.75	56	1.6	2.3	2.3	6.6	19
YE3-90S-4	1.1	1.5	2.61	1425	84.1	0.76	59	1.6	2.3	2.3	6.8	25
YE3-90L-4	1.5	2	3.47	1425	85.3	0.77	59	1.6	2.3	2.3	7	30
YE3-100L1-4	2.2	3	4.76	1440	86.7	0.81	64	1.6	2.3	2.3	7.6	37
YE3-100L2-4	3	4	6.3	1450	87.7	0.82	64	1.6	2.3	2.3	7.6	43
YE3-112M-4	4	5.5	8.4	1450	88.6	0.82	65	1.6	2.2	2.3	7.8	65
YE3-132S-4	5.5	7.5	11.2	1455	89.6	0.83	71	1.6	2	2.3	7.9	68
YE3-132M-4	7.5	10	15	1455	90.4	0.84	71	1.6	2	2.3	7.5	82
YE3-160M-4	11	15	21.5	1465	91.4	0.85	73	2.2	2.2	2.3	7.7	114
YE3-160L-4	15	20	28.8	1465	92.1	0.86	73	2.2	2.2	2.3	7.8	137
YE3-180M-4	18.5	25	35.3	1470	92.6	0.86	76	2.2	2	2.3	7.8	196
YE3-180L-4	22	30	41.8	1475	93	0.86	76	2.2	2	2.3	7.8	200
YE3-200L-4	30	40	56.6	1475	93.6	0.86	76	2.2	2	2.3	7.3	260
YE3-225S-4	37	50	69.6	1480	93.9	0.86	78	2.2	2	2.3	7.4	306
YE3-225M-4	45	60	84.4	1480	94.2	0.86	78	2.2	2	2.3	7.4	336
YE3-250M-4	55	75	103	1480	94.6	0.86	79	2.2	2.2	2.3	7.4	423
YE3-280S-4	75	100	136	1485	95	0.88	80	2.2	2	2.3	6.9	600
YE3-280M-4	90	125	163	1485	95.2	0.88	80	2.2	2	2.3	6.9	615
YE3-315S-4	110	150	197	1485	95.4	0.89	88	2.8	2	2.2	7	887
YE3-315M-4	132	180	236	1485	95.6	0.89	88	2.8	2	2.2	7	1058
YE3-315L1-4	160	220	285	1485	95.8	0.89	88	2.8	2	2.2	7.1	1075
YE3-315L2-4	200	270	352	1485	96	0.9	88	2.8	2	2.2	7.1	1180
YE3-355M1-4	220	300	387	1490	96	0.9	95	2.8	2	2.2	7.1	1570
YE3-355M2-4	250	340	440	1490	96	0.9	95	2.8	2	2.2	7.1	1692
YE3-355L1-4	280	380	492	1490	96	0.9	95	2.8	2	2.2	7.1	1642
YE3-355L2-4	315	430	554	1490	96	0.9	95	2.8	2	2.2	7.1	1795
Synchronous Speed1000r/min(6P)
YE3-80M1-6	0.37	0.5	1.09	885	73.5	0.7	54	1.6	1.9	2	6	15
YE3-80M2-6	0.55	0.75	1.5	885	77.2	0.72	54	1.6	1.9	2.1	6	17
YE3-90S-6	0.75	1	2.03	935	78.9	0.71	57	1.6	2	2.1	6	26
Ye3-90L-6	1.1	1.5	2.83	940	81	0.73	57	1.6	2	2.1	6	31
YE3-100L-6	1.5	2	3.78	945	82.5	0.73	61	1.6	2	2.1	6.5	30
YE3-112M-6	2.2	3	5.4	950	84.3	0.74	65	1.6	2	2.1	6.6	52
YE3-132S-6	3	4	7.2	960	85.6	0.74	69	1.6	2	2.1	6.8	63
YE3-132M1-6	4	5.5	9.5	960	86.8	0.74	69	1.6	2	2.1	6.8	74
YE3-132M2-6	5.5	7.5	12.7	960	88	0.75	69	1.6	2	2.1	7	82
YE3-160M-6	7.5	10	16.2	970	89.1	0.79	73	2.2	2	2.1	7	104
YE3-160L-6	11	15	23.1	970	90.3	0.8	73	2.2	2	2.1	7.2	163
YE3-180L-6	15	20	30.9	975	91.2	0.81	73	2.2	2	2.1	7.3	166
YE3-200L1-6	18.5	25	37.8	975	91.7	0.81	73	2.2	2	2.1	7.3	230
YE3-200L2-6	22	30	44.8	975	92.2	0.81	73	2.2	2	2.1	7.4	230
YE3-225M-6	30	40	59.1	985	92.9	0.83	74	2.2	2	2.1	6.9	294
YE3-250M-6	37	50	71.7	985	93.3	0.84	76	2.2	2	2.1	7.1	385
YE3-280S-6	45	60	85.8	985	93.7	0.85	78	22	2	2	7.3	460
YE3-280M-6	55	75	103	985	94.1	0.86	78	2.2	2	2	7.3	481
Synchronous Speed1000r/min(6P)
YE3-315S-6	75	100	143	990	94.6	0.84	83	2.8	2	2	6.6	844
YE3-315M-6	90	125	170	990	94.9	0.85	83	2.8	2	2	6.7	1055
YE3-315L1-6	110	150	207	990	95.1	0.85	83	2.8	2	2	6.7	981
YE3-315L2-6	132	180	244	990	95.4	0.86	83	2.8	2	2	6.8	1105
YE3-355M1-6	160	220	296	990	95.6	0.86	85	2.8	1.8	2	6.8	1524
YE3-355M2-6	200	270	365	990	95.8	0.87	85	2.8	1.8	2	6.8	1658
YE3-355L1-6	220	300	401	990	95.8	0.87	85	2.8	1.8	2	6.8	1908
YE3-355L2-6	250	340	456	990	95.8	0.87	85	2.8	1.8	2	6.8	2140
Synchronous Speed750r/min(8P)
YE3-80M1-8	0.18	0.25	0.76	645	58.7	0.61	52	1.6	1.8	1.9	5.2	17
YE3-80M2-8	0.25	0.35	0.97	645	64.1	0.61	52	1.6	1.8	1.9	5.7	18
YE3-90S-8	0.37	0.5	1.33	670	69.3	0.61	56	1.6	1.8	1.9	6.2	22
YE3-90L-8	0.55	0.75	1.88	670	73	0.61	56	1.6	1.8	2	5.9	28
YE3-100L1-8	0.75	1	2.27	680	75	0.67	59	1.6	1.8	2	6.2	33
YE3-100L2-8	1.1	1.5	3.12	680	77.7	0.69	59	1.6	1.8	2	6.2	39
YE3-112M-8	1.5	2	4.09	690	79.7	0.7	61	1.6	1.8	2	6.7	44
YE3-132S-8	2.2	3	5.7	705	81.9	0.71	64	1.6	1.8	2	6.7	61
YE3-132M-8	3	4	7.5	705	83.5	0.73	64	1.6	1.8	2	6.9	72
YE3-160M1-8	4	5.5	9.8	720	84.8	0.73	68	2.2	1.9	2	6.9	105
YE3-160M2-8	5.5	7.5	13.1	720	86.2	0.74	68	2.2	1.9	2	6.9	121
YE3-160L-8	7.5	10	17.4	720	87.3	0.75	68	2.2	1.9	2	6.6	138
YE3-180L-8	11	15	25.2	730	88.6	0.75	70	2.2	2	2	6.6	187
YE3-200L-8	15	20	33.5	730	89.6	0.76	73	2.2	2	2	6.8	242
YE3-225S-8	18.5	25	41	730	90.1	0.76	73	2.2	1.9	2	6.8	286
YE3-225M-8	22	30	47.3	730	90.6	0.78	73	2.2	1.9	2	7	319
YE3-250M-8	30	40	63.2	740	91.3	0.79	75	2.2	1.9	2	6.7	418
YE3-280S-8	37	50	77.5	735	91.8	0.79	76	2.2	1.9	2	6.7	539
YE3-280M-8	45	60	93.9	735	92.2	0.79	76	2.2	1.9	2	6.7	594
YE3-315S-8	55	75	112	735	92.5	0.81	82	2.8	1.8	2	6.8	902
YE3-315M-8	75	100	151	735	93.1	0.81	82	2.8	1.8	2	6.3	1045
YE3-315L1-8	90	125	179	735	93.4	0.82	82	2.8	1.8	2	6.4	1056
YE3-315L2-8	110	150	218	735	93.7	0.82	82	2.8	1.8	2	6.4	1166
YE3-355M1-8	132	180	260	740	94	0.82	89	2.8	1.8	2	6.4	1712
YE3-355M2-8	160	220	314	740	94.3	0.82	89	2.8	1.8	2	6.4	1848
YE3-355L1-8	185	250	358	740	94.5	0.83	89	2.8	1.8	2	6.4	1900
YE3-355L2-8	200	270	387	740	94.6	0.83	89	2.8	1.8	2	6.4	1980
Synchronous Speed600r/min(10P)
YE3-315S-10	45	60	99.1	590	92	0.75	82	2.8	1.5	2	6.2	857
YE3-315M-10	55	75	121	590	92	0.75	82	2.8	1.5	2	6.2	993
YE3-315L1-10	75	100	162	590	92.8	0.76	82	2.8	1.5	2	5.8	1030
YE3-315L2-10	90	125	191	590	93	0.77	82	2.8	1.5	2	5.9	1108
YE3-355M1-10	110	150	230	590	93.3	0.78	90	2.8	1.3	2	6	1626
YE3-355M2-10	132	180	274	590	93.8	0.78	90	2.8	1.3	2	6.1	1756
YE3-355L1-10	160	220	332	590	93.8	0.78	90	2.8	1.3	2	6.1	1881
YE3-355L2-10	185	250	384	590	93.8	0.78	90	2.8	1.3	2	6.1	1920
