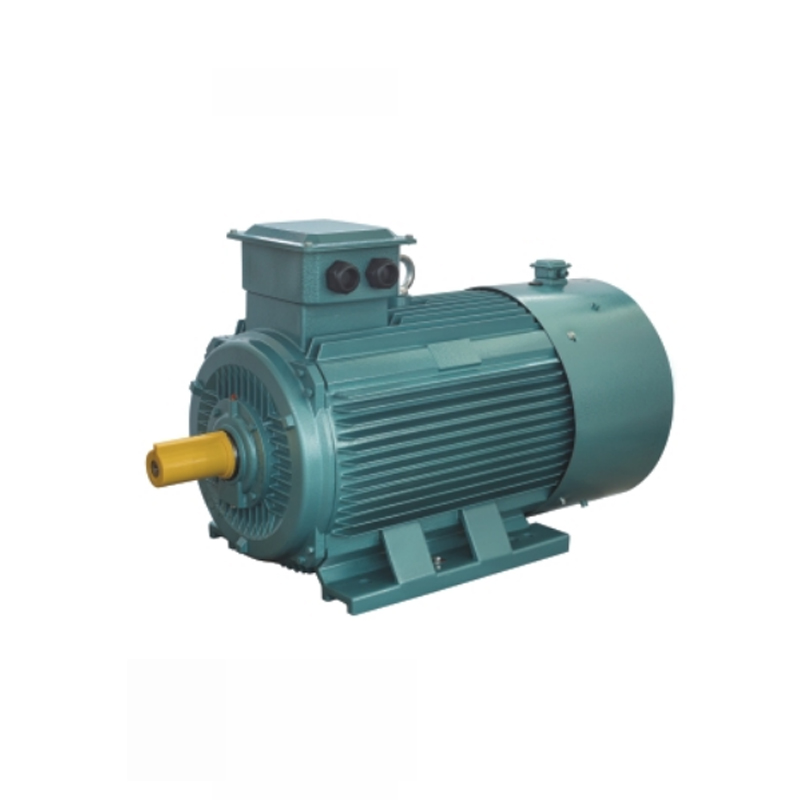

YVF2 series frequency-variable and speed regulation three phase asynchronous Motor

YVF2 series is derivative from Y2 series so the frame NO.and installation size corresponding to the same power are consistent with Y2 series,but the overall shape is appropriately longer.The motor is equipped with a separate axial fan as the cooling air source to ensure the temperature rise of the motor at low frequencies.The motor can be matched with various kinds of frequency conversion equipment at home and abroad,and its constituting speed control system is characterized by remarkable energy conservation,wide speed range,strong overload capability and excellent low-speed performance.It is extensively used in metallurgy,mining,petrochemical,textile,light industry and paper-making industry,etc.

Product Details:

Protection level:IP55

Cooling method:IC416

Insulation class:F

Magnetic pole:2.4.6.8.10

Terminal connection:s55kW,Y

>55kW,△

Rated voltage:380V

Rated frequency:50Hz

Operation Mode:S1(continuous duty)

Altitude:less than 1000 meters above elevation

Ambient temperature:-15℃-+40℃

For more information, please send an email or call our hotline

jiawofanny@outlook.com

Product description

Technical parameters of YVF2 series motors
Type	Output		Nominal voltage	Current (A)	RT (N.m)	Constant torque speed regulation range (Hz)	Constant power speed range (Hz)	LRT	BDT	LRA	weight(kg)
Type	(kw)	(HP)	Nominal voltage	Current (A)	RT (N.m)	Constant torque speed regulation range (Hz)	Constant power speed range (Hz)	RLT	RLT	RLA	weight(kg)
Synchronous Speed3000 r/min(2p)
YVF2-80M1-2	0.75	1	380	1.9	2.4	5-50	50-60	2.2	2.8	9	16
YVF2-80M2-2	1.1	1.5		2.68	3.5	5-50	50-60				17
YVF2-90S-2	1.5	2		3.51	48	5-50	50-60				21
YVF2-90L-2	2.2	3		4.93	7	5-50	50-60				25
YVF2-100L-2	3	4		6.4	9.6	5-50	50-60				32
YVF2-112M-2	4	5.5		8.3	12.7	5-50	50-60				41
YVF2-132S1-2	5.5	7.5		11.2	17.5	5-50	50-60				66
YVF2-132S2-2	7.5	10		14.9	23.9	5-50	50-60				67
YVF2-160M1-2	11	15		21.4	35	5-50	50-60				108
YVF2-160M2-2	15	20		28.9	47.8	5-50	50-60				118
YVF2-160L-2	18.5	25		35.4	58.9	5-50	50-60				137
YVF2-180M-2	22	30		41.8	70	5-50	50-60				170
YVF2-200L1-2	30	40		56.5	95.5	5-50	50-60				225
YVF2-200L2-2	37	50		69.3	117.8	5-50	50-60				250
YVF2-225M-2	45	60		83.8	143.3	5-50	50-60				290
YVF2-250M-2	55	75		102	175.1	5-50	50-60				404
YVF2-280S-2	75	100		138	238.8	5-50	50-60	1.7			512
YVF2-280M-2	90	125		165	286.5	5-50	50-60				558
YVF2-315S-2	110	150		199	350.2	5-50	50-60				924
YVF2-315M-2	132	180		238	420.2	5-50	50-60				1050
YVF2-315L1-2	160	220		285	509.3	5-50	50-60				1080
YVF2-315L-2	185	250		329	588.9	5-50	50-60				1090
YVF2-315L2-2	200	270		355	636.7	5-50	50-60				1100
YVF2-355M1-2	220	300		391	700.3	5-50	50-60				1560
YVF2-355M2-2	250	340		444	795.8	5-50	50-60				1610
YVF2-355L1-2	280	380		497	891.3	5-50	50-60				1700
YVF2-355L2-2	315	430		560	1002.8	5-50	50-60				1740
Synchronous Speed1500r/min(4P)
YVF2-80M1-4	0.55	0.75	380	1.61	3.5	5-50	50-100	2.2	2.8	9	16
YVF2-80M2-4	0.75	1		2.08	4.8	5-50	50-100				17
YVF2-90S-4	1.1	1.5		2.89	7	5-50	50-100				21
YVF2-90L-4	1.5	2		3.78	9.6	5-50	50-100				25
YMVF2-100L1-4	2.2	3		5.2	14	5-50	50-100				34
YVF2-10024	3	4		6.9	19.1	5-50	50-100				35
YVF2-112M-4	4	5.5		9	25.5	5-50	50-100				45
YVF2-132S-4	5.5	7.5		12	35	5-50	50-100				67
YVF2-132M-4	7.5	10		16	47.8	5-50	50-100				80
YVF2-160M-4	11	15		23	70	5-50	50-100				116
YVF2-160L-4	15	20		30.6	95.5	5-50	50-100				135
YVF2-180M-4	18.5	25		37	117.8	5-50	50-100				174
YVF2-180L-4	22	30		43.7	140.1	5-50	50-100				190
YVF2-200L-4	30	40		59.1	191	5-50	50-100				251
YVF2-225S-4	37	50		71.7	235.6	5-50	50-100				288
YVF2-225M-4	45	60		86.7	286.5	5-50	50-100				296
YVF2-250M-4	55	75		106	350.2	5-50	50-100				415
YVF2-280S-4	75	100		141	477.5	5-50	50-100	1.7			538
YVF2-280M-4	90	125		167	573	5-50	50-100				646
YVF2-315S-4	110	150		201	700.3	5-50	50-100				917
YVF2-315M-4	132	180		241	840.4	5-50	50-100				1088
YVF2-315L1-4	160	220		288	1018.7	5-50	50-100				1105
YVF2-315L-4	185	250		333	1177.8	5-50	50-100				1115
YVF2-315L24	200	270		359	1273.3	5-50	50-100				1240
YVF2-355M1-4	220	300		395	1400.7	5-50	50-75				1520
YVF2-355M2-4	250	340		449	1591.7	5-50	50-75				1598
YVF2-355L1-4	280	380		503	1782.7	5-50	50-75				1680
YVE2-355L2-4	315	430		566	2005.5	5-50	50-75				1820
Synchronous Speed1000rmin(6P）
YVF2-90S-6	0.75	1	380	226	7.2	5-50	50-100	1.9	2.8	9	21
YVF2-90L-6	1.1	1.5		3.18	10.5						25
YVF2-100L-6	1.5	2		4.21	14.3						34
YVF2-112M-6	2.2	3		6	21						40
YVF2-132S-6	3	4		7.9	28.7						62
YVF2-132M1-6	4	5.5		10.1	38.2						72
YVF2-132M2-6	5.5	7.5		13.4	52.5						83
YVF2-160M-6	7.5	10		17.2	71.6						110
YVF2-160L-6	11	15		24.5	105.1						132
YVF2-180L-6	15	20		31.7	143.3						180
YVF2-200L1-6	18.5	25		39.7	176.7						227
YVF2-200L2-6	22	30		46.3	210.1						239
YVF2-225M-6	30	40		61.6	286.5						296
YVF2-250M-6	3	50		74.6	353.4						392
YVF2-280S-6	45	60		88	429.8						491
YVF2-280M-6	55	75		106	525.3						561
YVF2-315S-6	75	100		147	716.3			1.6			871
YVF2-315M-6	90	125		173	859.5						996
YVF2-315L1-6	110	150		211	1050.5						1060
YVF2-315L2-6	132	180		249	1260.6						1106
YVF2-355M1-6	160	220		301	1528						1500
YVF2-355M2-6	185	250		348	1766.8						1545
YVF2-355M3-6	200	270		376	1910						1640
YVF2-355L1-6	220	300		413	2101						1690
YVF2-355L3-6	250	340		470	2387.5						1810
YVF2-355L4-6	280	380		526	2674.0						1850
Synchronous Speed750r/min(8P)
YVF2-100L1-8	0.75	1	380	2.78	9.6	5-50	50-100	2	2.8	9	29
YVF2-1002-8	1.1	1.5		3.64	14						31
YVF2-112M-8	1.5	2		4.64	19.1						40
YVF2-132S-8	2.2	3		6.3	28						54
YVF2-132M-8	3	4		81	38.2			2.2			65
YVF2-160M1-8	4	5.5		11.2	50.9						91
YVF2-160M2-8	5.5	7.5		14.7	70						98
YVF2-160L-8	7.5	10		19.2	95.5						121
YVF2-180L-8	11	15		27.4	140.1						166
YVF2-200L-8	15	20		36.1	191						223
YVF2-225S-8	18.5	25		43.5	235.6						265
YVF2-225M-8	22	30		49.7	280.1						293
YVF2-250M-8	30	40		66.4	382			2			386
YVF2-280S-8	37	50		81.4	471.1						485
YVF2-280M-8	45	60		98	573						545
YVf2-315S-8	55	75		116	700.3						828
YVF2-315M-8	75	100		158	955						828
YVF2-315L1-8	90	125		186	1146						958
YVF2-315L2-8	110	150		226	1400.7						968
YVF2-355M1-8	132	180		270	1680.8						1040
YVF2-355M2-8	160	220		325	2037.3						1535
YVF2-355L1-8	185	250		375	2355.7						1615
YVF2-355L2-8	200	270		403	2546.7						1705
Synchronous Speed600r/min(10P)
YVF2-160M-10	4	5.5	380	11.8	63.7	5-50	50-100	1.1	1.9	6.3	83
YVF2-160L-10	5.5	7.5		15.8	87.5			1.1	1.9		84
YVF2-180L-10	7.5	10		21	119.4			1.1	1.9		113
YVF2-200L-10	11	15		29.4	175.1			1.1	1.9		155
YVF2-225S-10	15	20		38.7	238.8			1.1	1.9		208
YVF2-225M-10	18.5	25		45.2	294.5			1.1	1.9		252
YVF2-250M-10	22	30		51.9	350.2			1.1	1.9		285
YVF2-280S-10	30	40		69.2	477.5			1.1	1.9		366
YVF2-280M-10	37	50		82.6	588.9			1.1	1.9		460
YVF2-315S-10	45	60		99.6	716.3			1.2	2	6.5	787
YVF2-315M-10	55	75		121	875.4			1.2	2		856
YVF2-315L1-10	75	100		162	1193.8			1.2	2		964
YVF2-315L2-10	90	125		191	1432.5			1.2	2		1036
YVF2-355M1-10	110	150		230	1750.8			1.2	2		1527
YVF2-355M2-10	132	180		275	2101			1.2	2	7	1607
YVF2-355L1-10	160	220		333	2546.7			1.2	2		1700
YVF2-355L2-10	185	250		385	2944.6			1.2	2		1780
